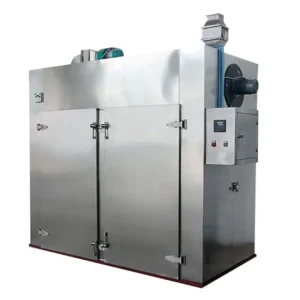

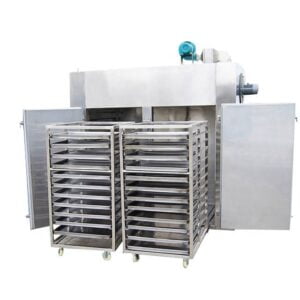

Серия CT китайского производства 144 сушильная печь с циркуляцией горячего воздуха для противней
144 trays hot air circulating drying oven adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is enclosed to make that the heat efficiency of the drying oven increases from 3-7% of the traditional drying oven to 35-40% of the present one. The highest heat efficiency can be up to 50%. The successful design of CT-C hot air circulating oven makes that the hot air circulating drying oven in our country reach the advanced level in the world. It saves energy and increases the economic benefit. In 1990, the medical management bureau of the State issued the industry standard and the uniform type is RXH.
Описание
144 сушильная печь с циркуляцией горячего воздуха для противней
144 trays hot air circulating drying oven adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is enclosed to make that the heat efficiency of the drying oven increases from 3-7% of the traditional drying oven to 35-40% of the present one. The highest heat efficiency can be up to 50%. The successful design of CT-C hot air circulating oven makes that the hot air circulating drying oven in our country reach the advanced level in the world. It saves energy and increases the economic benefit. In 1990, the medical management bureau of the State issued the industry standard and the uniform type is RXH.
1.Options of heat source: пар, электричество, или дальний инфракрасный диапазон, or both steam electricity.
2.Drying temperature: steam heating 50-130˚C, Max.140˚C.
3.Электричество и дальнее инфракрасное излучение:50-300˚C.Automatic control system and computer control system on request.
4.Commonly using steam pressure 0.2-0.8MPa(2-8 бар).
5.Для CT-C-I, электрический с подогревом, номинальная потребляемая мощность:15кВт, real consumption : 5-8kW/h.
6.The special requirements should be indicated at the time of order.
7.For operation temperature of over 140˚C or less than 60˚C, please indicate when order.
8.The ovens and baking trays made by our factory are uniform in dimensions, and can be exchanged each other.
9.Baking plate dimensions:460x640x45mm.
144 trays hot air circulating drying oven Application
This drying oven is suitable for material and product hot solidification and dry de-watering in the pharmaceutical, химический, еда, farming side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, пудра, частица, питьевое средство, pill, packing bottle, пигмент, краситель, dewatering vegetable, dried fruit piece, колбаса, plastics, resin, electric component, baking varnish and etc.
144 trays hot air circulating drying oven Feature
Most hot air is circulated in the oven. The heat efficiency is high and the energy is saved. By using the forced ventilating function, there are adjustable air distribution plates inside the oven, the materials can be dried uniformly. The heating source might be steam, горячая вода, electricity and far infrared, with a wide selection. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. The machine can be used for drying various materials and is a versatile drying equipment.
144 trays hot air circulating drying oven Technical Parameter
| Model of industrial standard | Technical parameter Model specification | Dry amount each (кг) | Equipped власть (кВт) | Consu- mption of steam (кг/ч) | Area of radiation (м2) | Amount of air (m3/h) | Temp- erature difference between up and low (оС) | Amount of drying tray to be equipped | Overall dimensions W×D×H(мм) | Equip- ped drying trolly | Equip- ment weight |
| RXH-14-B | CT-Ⅰ | 120 | 1.1 | 20 | 20 | 2800 | ±2 | 48 | 2430×1200 ×2375 | 2 | 1200 |
| RXH-27-B | CT-Ⅱ | 240 | 2.2 | 40 | 40 | 5200 | ±2 | 96 | 2430×2200 ×2433 | 4 | 1500 |
| RXH-41-B | CT-Ⅲ | 360 | 3 | 60 | 80 | 8000 | ±2 | 144 | 3430×2200 ×2620 | 6 | 2000 |
| RXH-54-B | CT-Ⅳ | 480 | 4 | 80 | 100 | 9800 | ±2 | 192 | 4460×2200 ×2620 | 8 | 2300 |
| RXH-5-C | CT-C-O | 25 | 0.45 | 5 | 5 | 3450 | ±2 | 16 | 1130×1100 ×1750 | 0 | 800 |
| RXH-7-C | CT-C-ⅠA | 50 | 0.45 | 10 | 10 | 3450 | ±2 | 24 | 1400×1200 ×2000 | 1 | 1000 |
| RXH-14-C | CT-C-Ⅰ | 120 | 0.45 | 18 | 20 | 3450 | ±2 | 48 | 2300×1200 ×2000 | 2 | 1500 |
| RXH-27-C | CT-C-Ⅱ | 240 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 2300×2200 ×2000 | 4 | 1800 |
| RXH-27A-C | CT-C-ⅡA | 240 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 4460×1200 ×2290 | 4 | 1800 |
| RXH-41-C | CT-C-Ⅲ | 360 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 3430×2200 ×2000 | 6 | 2200 |
| RXH-42A-C | CT-C-ⅢA | 360 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 2300×3200 ×2000 | 6 | 2200 |
| RXH-54-C | CT-C-Ⅳ | 480 | 1.8 | 72 | 100 | 13800 | ±2 | 192 | 4460×2200 ×2290 | 8 | 2800 |
| RXH-25-A | High effect and high temperature far infrared sterilization oven The power will be equipped in accordance with the requirements of temperature. | 1200×1000 ×1600 | 1 | 1200 | |||||||
Материал, подлежащий сушке
This drying oven is suitable for the material and product hot solidi cation and dry de-watering in the pharmaceutical, химический, еда, farming, side-product,aquatic product, light industries, heavy industries and others industries. Such as:raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster , пудра, частица, питьевое средство, pill, packing bottle,пигмент, dyestuf f, de-watering vegetable, dried fruit piece, колбаса, plastics,resin, electric component, baking varnish and etc.
