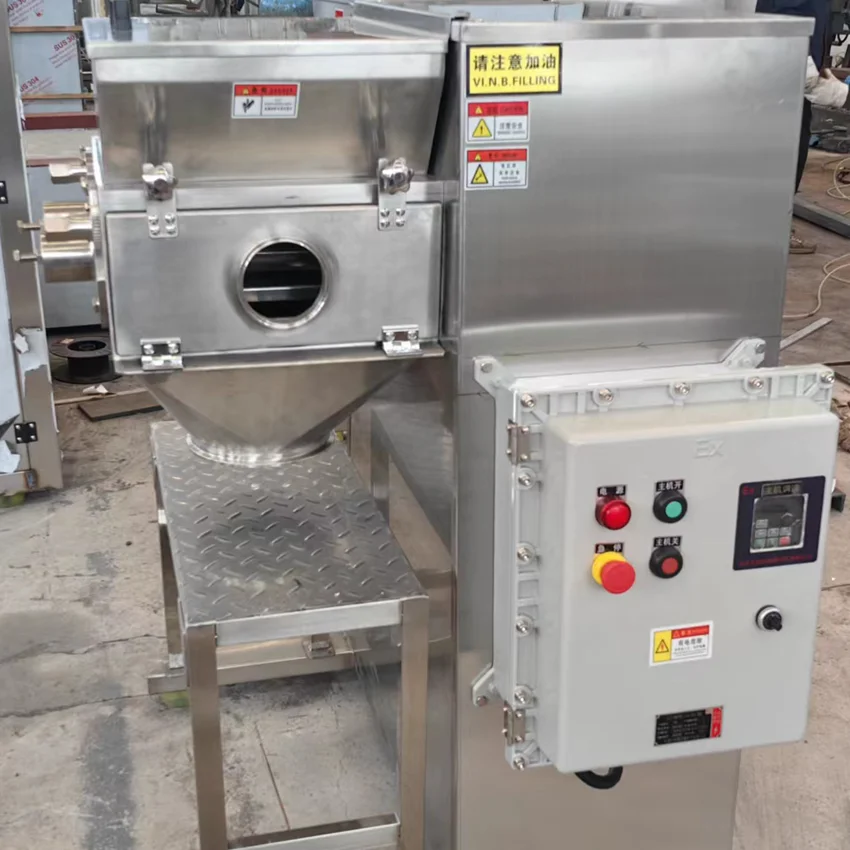

YK -160 YK Swing Granulator
YK Swing Granulator is the special granulator that can make damp powder pass through screen and granulate particles under the reaction of clockwise and counterclockwise rotating of cylinder. In addition, it can make the agglomeration powder into the needed size particles. The material contact area is made of stainless. It’s easy to clean, simple operation and low energy consumption
Description
YK -160 Series Swaying Mixing Granulating Granulation machine（YK Swing Granulator）
WORKING Principle
YK Swing Granulator is the special granulator that can make damp powder pass through screen and granulate particles under the reaction of clockwise and counterclockwise rotating of cylinder. In addition, it can make the agglomeration powder into the needed size particles. The material contact area is made of stainless. It’s easy to clean, simple operation and low energy consumption.
Material to be dried
The machine is applicable for foodstuff, chemical, solid drink and so on lndustries.
| Spec | YK-160 | YK-200 | YK-320 |
| Capacity (kg/h) | 150-300 | 200-500 | 300-600 |
| Power (kw) | 3 | 5.5 | 7.5 |
| Speed of cylinder (rpm) | 65 | 65 | 65 |
| Swing angle (°) | 360 | 360 | 360 |
| Diameter of cylinder (mm) | 160 | 200 | 320 |
| Overall size(LxWxH) | 1000x800x1300 | 1400x850x1400 | 1500x1200x1500 |
| Weight (kg) | 300 | 450 | 750 |
