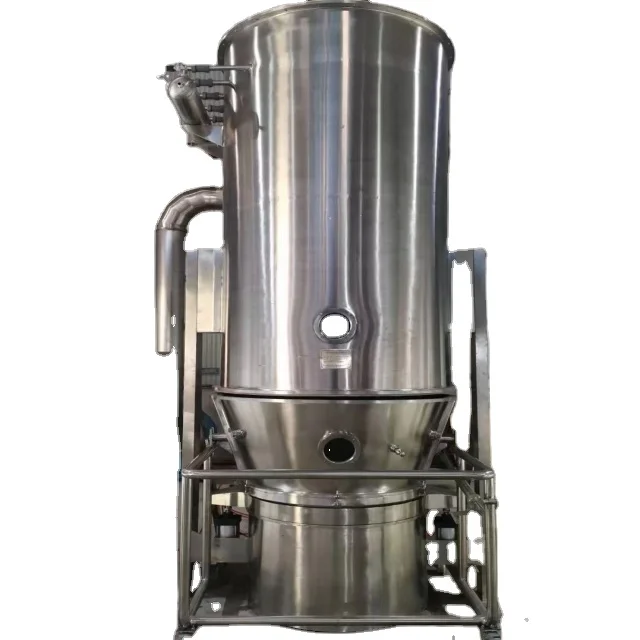

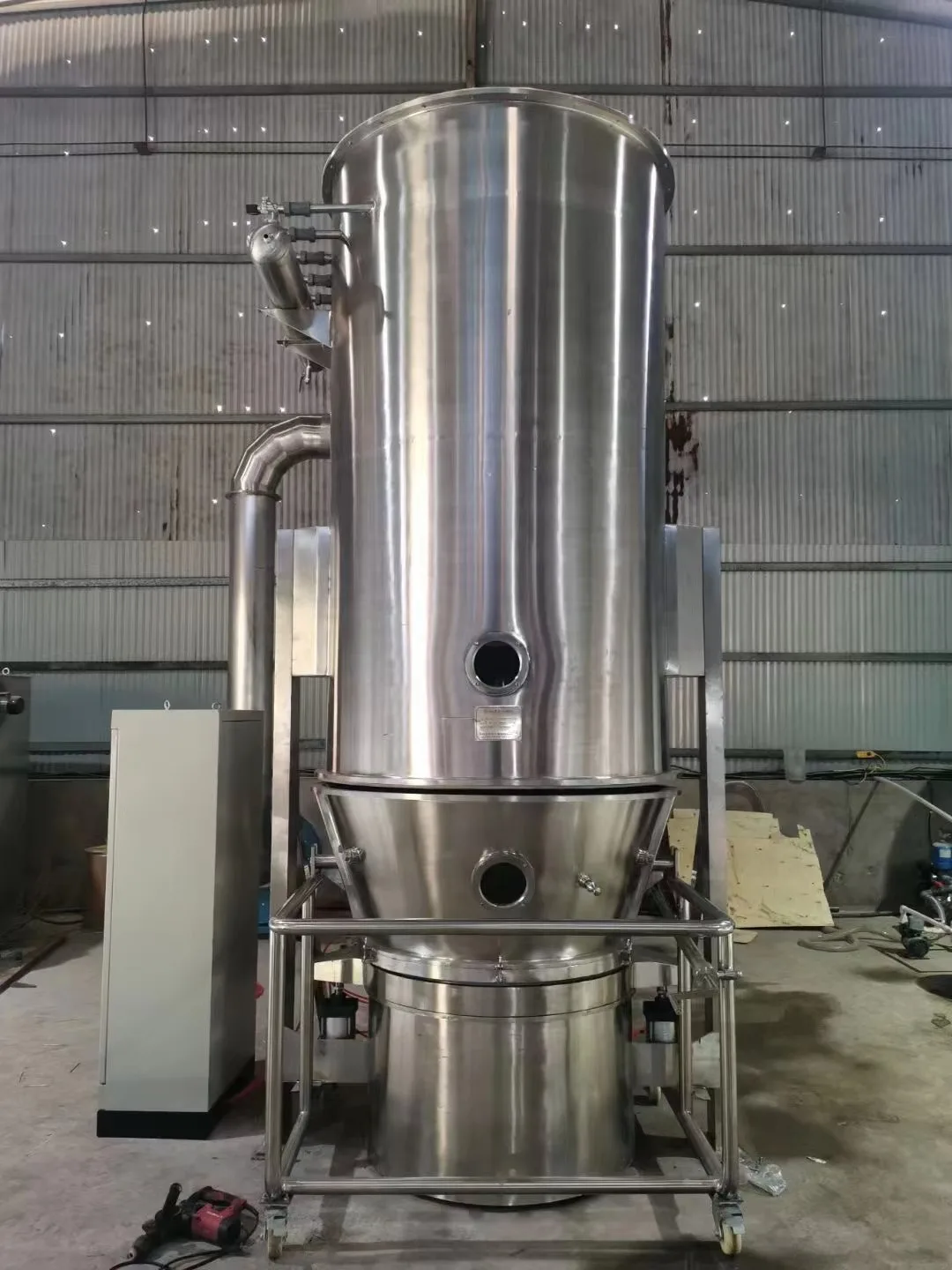

Low-Priced FG Vertical Continuous Vibrating Fluid Bed Dryer
Features of FG Series Vertical Fluidized Dryer
Because of powder granulating, the flow property is improved and the dust is reduced.
Because of powder granulating, its solving property is improved.
The mixing, granulating and drying could be completed in one machine.
Being adapted anti static filter bag, the operation is safe.
There is explosion releasing hole to keep the people’s security when explosion.
The equipment has no dead corner, easy for feeding, discharging and clean. It could meet the requirement of GMP.
Description
Low-Priced FG Vertical Continuous Vibrating Fluid Bed Dryer
FG Series Vertical Fluidized Dryer
The machine is main used for drying powder or granules from foodstuff, chemical and so on industries.
Features of FG Series Vertical Fluidized Dryer
Because of powder granulating, the flow property is improved and the dust is reduced.
Because of powder granulating, its solving property is improved.
The mixing, granulating and drying could be completed in one machine.
Being adapted anti static filter bag, the operation is safe.
There is explosion releasing hole to keep the people’s security when explosion.
The equipment has no dead corner, easy for feeding, discharging and clean. It could meet the requirement of GMP.
| Model | FG-3 | FG-5 | FG-30 | FG-60 | FG-120 | FG-200 | FG-300 | FG-500 | FG-1000 | |
| Container of Raw Material | Diameter(mm) | 300 | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | 2200 |
| Volume(L) | 12 | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | 2500 | |
| Production Capacity | Min(kg/batch) | 1.6 | 4 | 15 | 30 | 80 | 100 | 150 | 250 | 500 |
| Max(kg/batch) | 4 | 6 | 36 | 72 | 140 | 240 | 360 | 600 | 1100 | |
| Steam Consumption(kg/batch) | 12 | 23 | 70 | 140 | 211 | 282 | 366 | 465 | 800 | |
| Amount of Compressed Air(m³/min) | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 1.1 | 1.6 | 1.5 | |
| Power of Fan(kW) | 2.2 | 4 | 5.5 | 11 | 18.5 | 22 | 30 | 45 | 75 | |
| Temperature(℃) | Adjustable from normal temperature to 120℃ | |||||||||
| Material Collecting Rate(%) | >99 | |||||||||
| Option Time(min) | 15~30(depends on material) | |||||||||
| Final Humidity(%) | -0.2(depends on material) | |||||||||
| Noise(dB) | ≤75 | |||||||||
| Height of Main Machine(mm) | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4800 | 6200 | |
Title goes here.
industry: tablet, capsule, low sugar or no sugargranule.
Foodstuff: cocoa, coffee, milkpowder, juice of granulate, flavoring and so on.
Other industries: feed chemical fertilizer, pigment, dyestuff and so on.
Pharmaceutical industry: power or granule material.
Coating: Granule, protecting coat of pellet, spare color, slowrelease film, bowel-dissolve coating, etc.
Foodstuff: cocoa, coffee, milkpowder, juice of granulate, flavoring and so on.
Other industries: feed chemical fertilizer, pigment, dyestuff and so on.
Pharmaceutical industry: power or granule material.
Coating: Granule, protecting coat of pellet, spare color, slowrelease film, bowel-dissolve coating, etc.
Service before sell:
—-Provide relative technical data for help equipment selection—-Running pilot test—-Offering advice for equipment selection, material analysis—-Provide flow chart, basic drawing—-Provide technical design
Service in sell:
—-Provide factory layout according to contract—-Manufacturing ordered equipment according to the related standard—-A presentation report of manufacturing situation will be offered every 15days—-Tracking and supervising in whole manufacturing and transporting period according to the contract requirement—-Photo of wooden case will be offered, wooden case with standard shipping marks.—-Photo of freight loading will be offered.—-A record of detailed delivery list will be offered—-A record of detailed freight loading list will be offered—-All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client’s clearing
Service after sell:
—-Send service engineer for help instruct installation.—-Send service engineer for running test at site and training the operator—-Help client for maintenance and repair—-Provide one year spare part—-Quality warranty for two years after sell
