GFG Series High Efficiency Easy Operation High Quality Electric Heater Vertical Mixing Granulator Fluid Bed Drying Machine

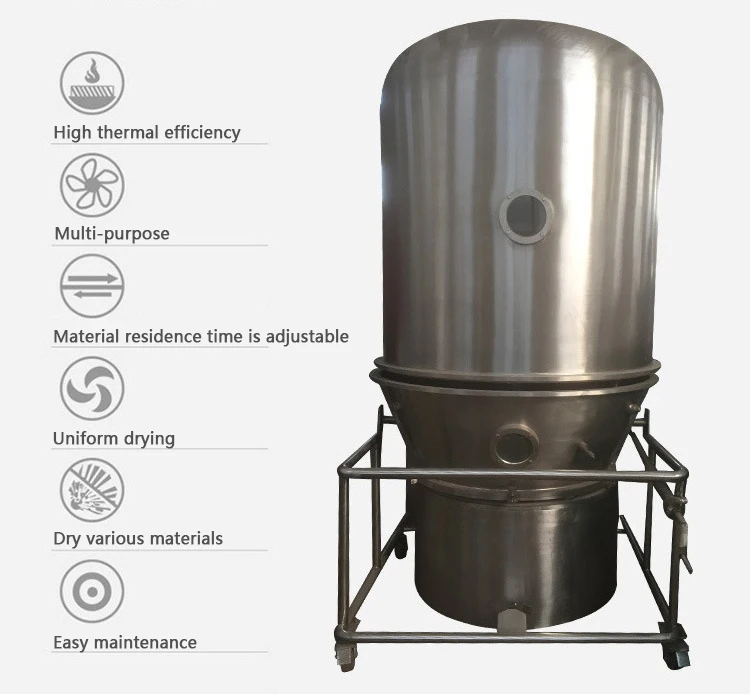

Vertical Mixing Granulator Fluid Bed Drying Machine
○ The structure of fluidization bed is of round so as to avoid dead corner.
○ Inside the hopper there is a stirring device in order to avoid agglomeration of raw material and forming canal of flow.
○ The granule is discharged through the method of turning over. It is very convenient and full. The discharged system can be designed as request too.
○ It is operated at the conditions of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient for cleaning. It is an ideal equipment that is in conformity with the requirements of GMP.
○ The drying speed is fast and the temperature is uniform. The drying time is 20-30 minutes normally.
Description
GFG Series High Efficiency Easy Operation High Quality Electric Heater Vertical Mixing Granulator Fluid Bed Drying Machine

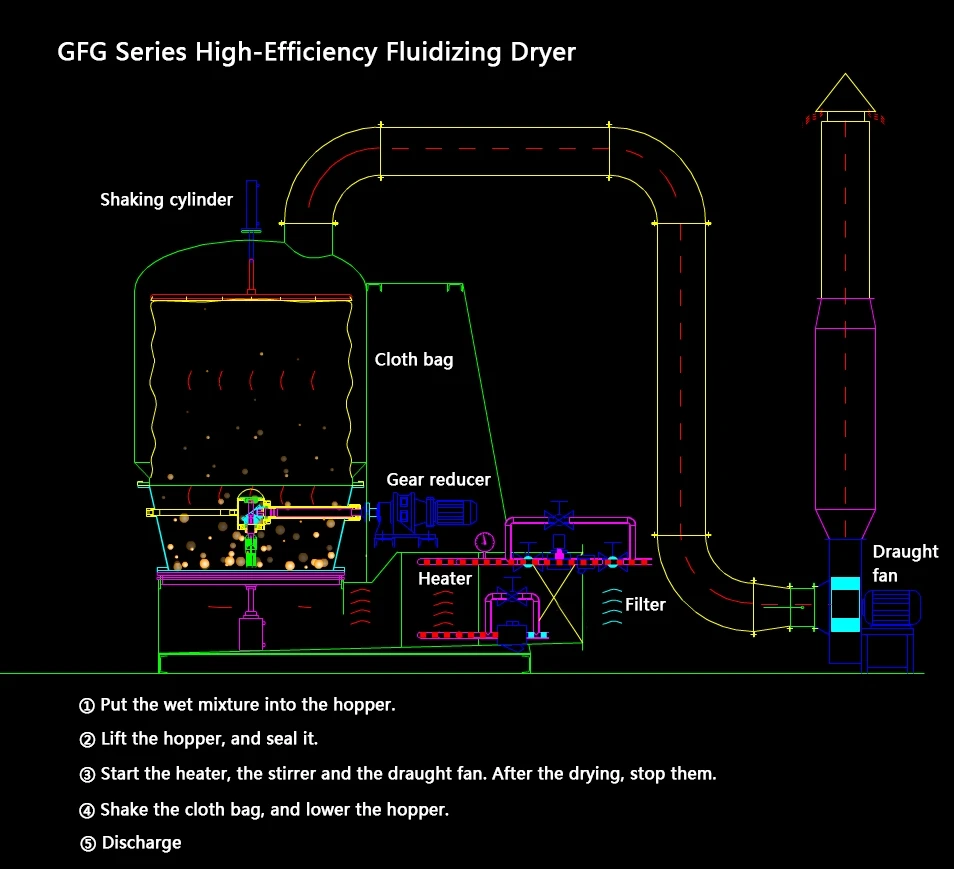

GFG High Efficiency Fluid Bed Dryer( Vertical Mixing Granulator Fluid Bed Drying Machine)
○ The structure of fluidization bed is of round so as to avoid dead corner.
○ Inside the hopper there is a stirring device in order to avoid agglomeration of raw material and forming canal of flow. ○ The granule is discharged through the method of turning over. It is very convenient and full. The discharged system can be designed as request too. ○ It is operated at the conditions of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient for cleaning. It is an ideal equipment that is in conformity with the requirements of GMP. ○ The drying speed is fast and the temperature is uniform. The drying time is 20-30 minutes normally.
GFG High Efficiency Fluid Dryer (Vertical Mixing Granulator Fluid Bed Drying Machine) | |||||||||
Model | GFG-60 | GFG-100 | GFG-120 | GFG-150 | GFG-200 | GFG-300 | GFG-500 | GFG-1000 | |
Capacity(kg) | 60 | 100 | 120 | 150 | 200 | 300 | 500 | 1000 | |
Fan | Air Volume(m³/h) | 2361 | 3488 | 4000 | 4901 | 6032 | 7800 | 10800 | 15000 |
Air Pressure(mmH₂O) | 594 | 533 | 533 | 679 | 787 | 950 | 950 | 1200 | |
Power(kW) | 7.5 | 11 | 11 | 15 | 22 | 30 | 37 | 75 | |
Stirring Power(kW) | 0.4 | 0.55 | 0.55 | 1.1 | 1.1 | 1.1 | 1.5 | 2.2 | |
Rotating Speed(rpm) | 11 | ||||||||
Steam consumption(kg/h) | 141 | 170 | 170 | 240 | 282 | 366 | 451 | 800 | |
Time of Operation(min) | 15~30(depends on material) | ||||||||
Height of Main Machine(mm) | 2700 | 2900 | 2900 | 2900 | 3100 | 3600 | 3850 | 5800 |
1. Use screw to extrude and vibrate granule and granulate granuleusing the methods of humidity, high speed and mixing;
2. Suitable for drying humidity block or powder raw material in thefields such as pharmaceutical , foodstuff, feedstuff, chemicalindustries and so on;
3. The raw material is large in granule and small in bolck and havingadhesive property;
4. Suitable for raw materials, its volume will be changed when dry,such as giantarum, polyacrylamide, etc.
2. Suitable for drying humidity block or powder raw material in thefields such as pharmaceutical , foodstuff, feedstuff, chemicalindustries and so on;
3. The raw material is large in granule and small in bolck and havingadhesive property;
4. Suitable for raw materials, its volume will be changed when dry,such as giantarum, polyacrylamide, etc.
Jiangsu Changshi Drying Technology Co., Ltd specializes in design, production and development of mixer, dryer, crusher, granulator, vibrating screen, dust collector and conveyor. The company has modern standard workshop buildings, engineering and technical personnel with medium and senior titles, more than 10 sets of processing equipment.The specialty provides complete set of powder equipment and solutions. In accordance with the GMP certification standard, the whole process of service is provided.
Multiple sets of advanced and sophisticated equipment
Complete and strict production control to be ensure the quality
Clean and tidy warehouse management
Vertical Mixing Granulator Fluid Bed Drying Machine Service before sell:
—-Provide relative technical data for help equipment selection—-Running pilot test—-Offering advice for equipment selection, material analysis—-Provide flow chart, basic drawing—-Provide technical design
Vertical Mixing Granulator Fluid Bed Drying Machine Service in sell:
—-Provide factory layout according to contract—-Manufacturing ordered equipment according to the related standard—-A presentation report of manufacturing situation will be offered every 15days—-Tracking and supervising in whole manufacturing and transporting period according to the contract requirement—-Photo of wooden case will be offered, wooden case with standard shipping marks.—-Photo of freight loading will be offered.—-A record of detailed delivery list will be offered—-A record of detailed freight loading list will be offered—-All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client’s clearing
Vertical Mixing Granulator Fluid Bed Drying Machine Service after sell:
—-Send service engineer for help instruct installation.—-Send service engineer for running test at site and training the operator—-Help client for maintenance and repair—-Provide one year spare part—-Quality warranty for two years after sell
1.Do you have OEM service? Do you provide parts? Yes, we will, as long as you provide us with your drawings and detailed requirements. 2.How can we visit your factory? You can fly to Changzhou airport, or if you arrive in Shanghai, you can tell us your specific location. We will arrange a driver to pick you up. 3.How to transport equipment? We usually choose sea transportation. Laboratory models can be shipped by air according to customer requirements. 4.What is the voltage of the equipment? The equipment voltage is 110V~380V, the specification can be customized according to the voltage standard of the country where your equipment is used.
