Stainless Steel Sludge Drying Machine Stirring Blade Fermentation Residue Hollow Paddle Dryer

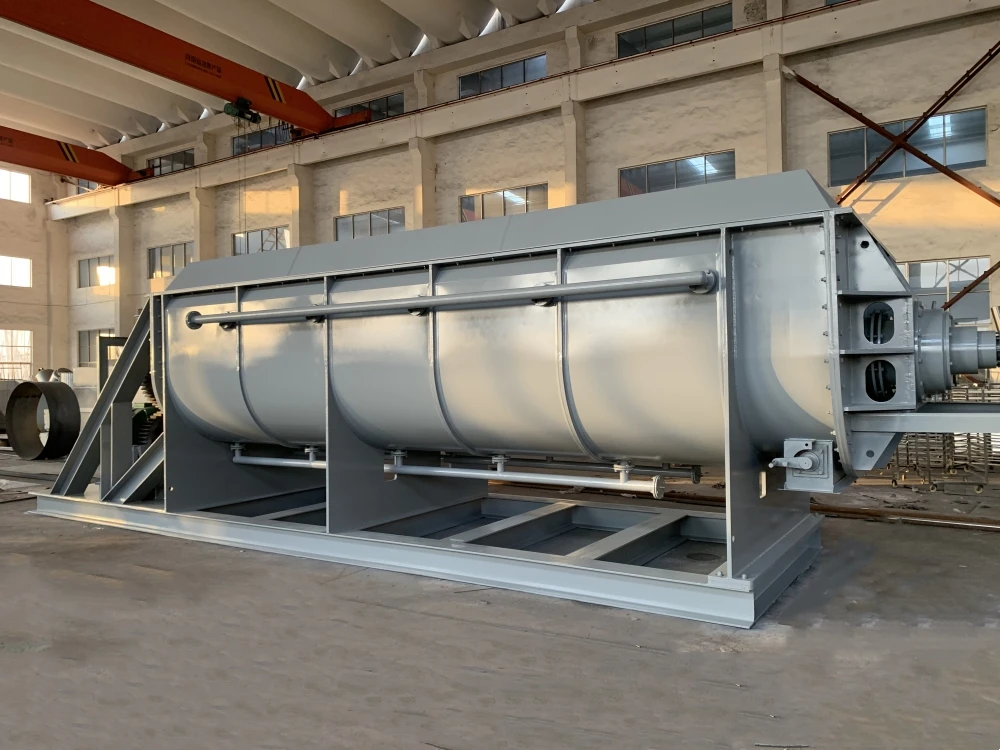

Hollow paddle Dryer （Sludge Drying Machine）
is a horizontal stirring and heat conduction type Drying Equipment that can work continuously. Its stirring blade is like ship paddle, so it is called paddle dryer. In foreign countries, it is also called slot dryer or stirring dryer.
Hollow paddle dryer is successfully used in foodstuff, chemical, petrochemical, dyestuff, industry sludge fields, etc. The characters of heat transfer, cooling, and stirring make the machine can achieve the following operation: Calcination (low temperature), cooling, drying (solvent recovery), heating (melting), reaction and sterilization. Stirring paddle is heat transfer surface as well, it makes the unit efficient heat transfer area larger, and handling time is reduced. Heat transfer surface of wedge type has slef-cleaning function. Compress—expand stirring function makes the material mixed uniformly. Material makes piston flow movement along the axial direction, in the axial direction interval, the temperature, humidity and mixedness gradient is very low.
Description
Stainless Steel Dehydrator Sludge Drying Machine Stirring Blade Fermentation Residue Hollow Paddle Dryer
Sludge Drying Machine Principle

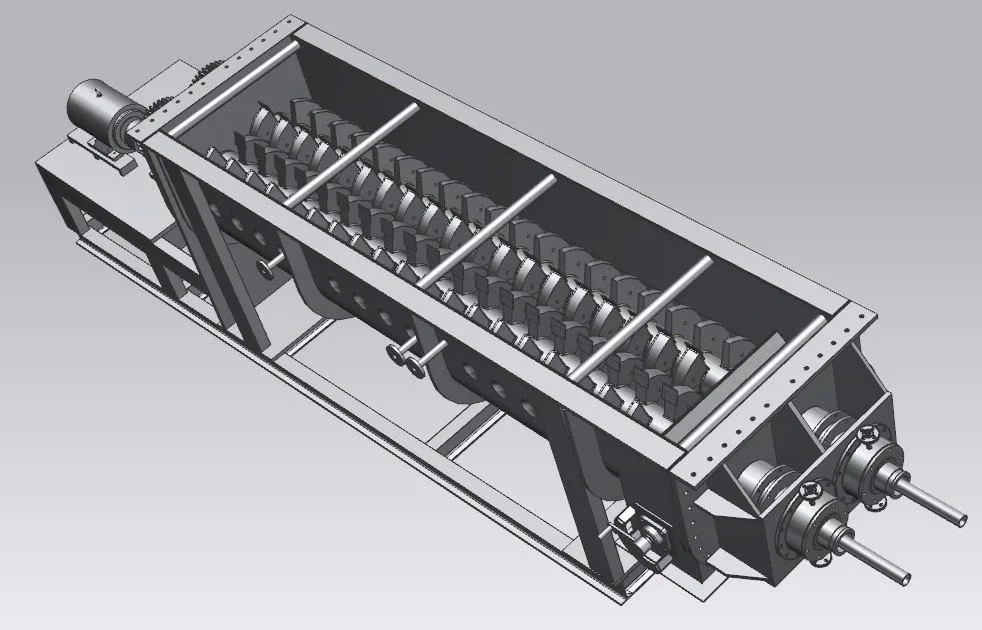

KJG Hollow Blade dryer is a kind of contacting dryer. There is jacket on the body of dryer, hollow blade strongly welded on two hollow shafts, filling heating medium (could be hot water, steam or thermal oil) in them, wet raw material is heated, dried as well as driven forward by two shafts. It could be consisted of one to four shafts, whole operation will be finished in closed or partial closed environment.
Sludge Drying Machine Features
1. Drying efficiency could arrives 80%-90%. 2. The dryer support continuous operation and batch operation, support vacuum drying for thermal sensitive material and normal drying. Support heating, evaporating and cooling.3. Thermal oil, steam, hot water and chilling fluid are available to be used as heating/cooling medium4. Special structure of paddle which has large heating area.5. Structure of dryer is very compact, almost of the dryer could be transported by normal container.
| Hollow Blade Dryer（Sludge Drying Machine） | |||||||||
Item | KJ G-2.7 | KJ G-9 | KJ G-13 | KJ G-18 | KJ G-24 | KJ G-29 | KJ G-36 | KJ G-41 | KJ G-48 |
Heat Transfer Area(㎡) | 2.7 | 9 | 13 | 18 | 24 | 29 | 36 | 41 | 48 |
Effective Volume(㎡) | 0.06 | 0.32 | 0.59 | 1.09 | 1.53 | 1.85 | 2.42 | 2.8 | 3.54 |
Rotating Speed(rpm) | 15-30 | 10-25 | 10-25 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
Power(kW) | 2.2 | 4 | 5.5 | 7.5 | 11 | 11 | 15 | 15 | 30 |
Width of Dryer Body(mm) | 306 | 584 | 762 | 940 | 1118 | 1118 | 1296 | 1296 | 1474 |
Total Width(mm) | 736 | 841 | 1066 | 1320 | 1474 | 1474 | 1676 | 1676 | 1854 |
Lengh of Dyer Body(mm) | 1956 | 2820 | 3048 | 3328 | 3454 | 4114 | 4115 | 4724 | 4724 |
Total Length(mm) | 2972 | 4876 | 5486 | 5918 | 6147 | 6808 | 6960 | 7570 | 7772 |
Distance between Feeding and Discharging(mm) | 1752 | 2540 | 2768 | 3048 | 3150 | 3810 | 3810 | 4420 | 4420 |
Height in Center(mm) | 380 | 380 | 534 | 610 | 762 | 762 | 915 | 915 | 1066 |
Total Height(mm) | 762 | 838 | 1092 | 1270 | 1524 | 1524 | 1778 | 1778 | 2032 |
Hollow Blade Dryer | |||||||||
Item | KJ G-52 | KJ G-62 | KJ G-68 | KJ G-73 | KJ G-81 | KJ G-87 | KJ G-95 | KJ G-110 | KJG-200 |
Heat Transfer Area(㎡) | 52 | 62 | 68 | 73 | 81 | 87 | 95 | 110 | 200 |
Effective Volume(㎡) | 3.96 | 4.79 | 5.21 | 5.78 | 6.43 | 7.39 | 8.07 | 9.46 | 15 |
Rotating Speed(rpm) | 10-20 | 10-20 | 10-20 | 5-15 | 5-15 | 5-15 | 5-15 | 5-10 | 5-10 |
Power(kW) | 30 | 45 | 45 | 55 | 55 | 75 | 75 | 75 | 110 |
Width of Dryer Body(mm) | 1474 | 1651 | 1652 | 1828 | 1828 | 2032 | 2032 | 2210 | 2500 |
Total Width(mm) | 1854 | 2134 | 2134 | 2286 | 2286 | 2438 | 2438 | 2668 | 2800 |
Lengh of Dyer Body(mm) | 5258 | 5410 | 5842 | 5461 | 6020 | 5537 | 6124 | 6122 | 9200 |
Total Length(mm) | 8306 | 8865 | 9296 | 9119 | 9678 | 9119 | 9704 | 9880 | 11000 |
Distance between Feeding and Discharging(mm) | 4954 | 4953 | 5384 | 5004 | 5562 | 5080 | 5664 | 5664 | 8700 |
Height in Center(mm) | 1066 | 1220 | 1220 | 1220 | 1220 | 1220 | 1220 | 1220 | 1250 |
Total Height(mm) | 2032 | 2362 | 2362 | 2464 | 2464 | 2566 | 2566 | 2668 | 3000 |
Title goes here.
Can be used for drying: antibiotic mycelium, fermentation residue, pharmaceutical waste, fertilizer, sludge, clay, feed, starch, etc.
Jiangsu Changshi Drying Technology Co., Ltd specializes in design, production and development of mixer, dryer, crusher, granulator, vibrating screen, dust collector and conveyor. The company has modern standard workshop buildings, engineering and technical personnel with medium and senior titles, more than 10 sets of processing equipment.The specialty provides complete set of powder equipment and solutions. In accordance with the GMP certification standard, the whole process of service is provided.

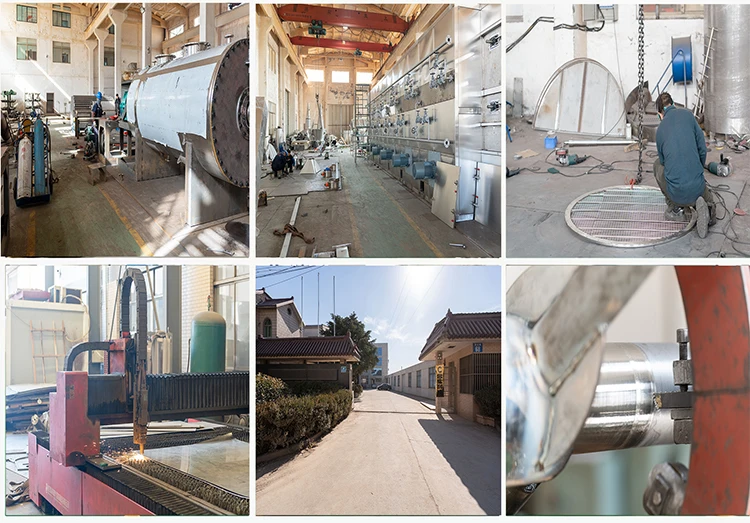

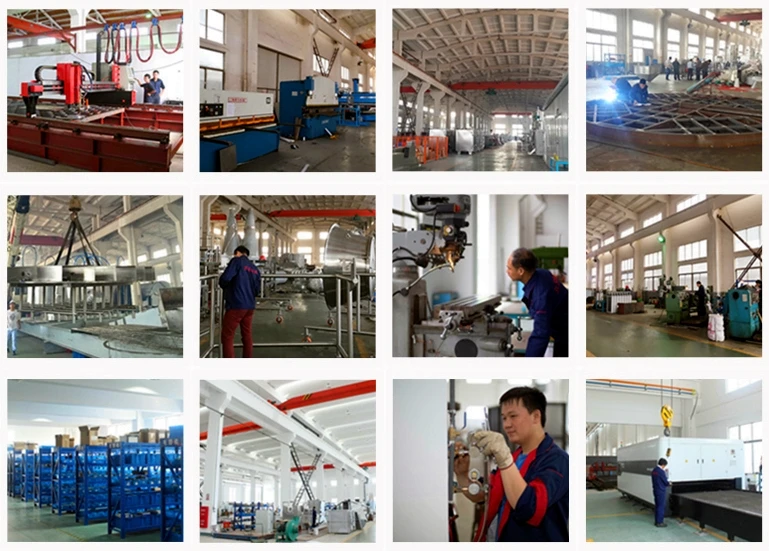

Multiple sets of advanced and sophisticated equipment
Complete and strict production control to be ensure the quality
Clean and tidy warehouse management
Sludge Drying Machine Service before sell:
—-Provide relative technical data for help equipment selection—-Running pilot test—-Offering advice for equipment selection, material analysis—-Provide flow chart, basic drawing—-Provide technical design
Sludge Drying Machine Service in sell:
—-Provide factory layout according to contract—-Manufacturing ordered equipment according to the related standard—-A presentation report of manufacturing situation will be offered every 15days—-Tracking and supervising in whole manufacturing and transporting period according to the contract requirement—-Photo of wooden case will be offered, wooden case with standard shipping marks.—-Photo of freight loading will be offered.—-A record of detailed delivery list will be offered—-A record of detailed freight loading list will be offered—-All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client’s clearing
Sludge Drying Machine Service after sell:
—-Send service engineer for help instruct installation.—-Send service engineer for running test at site and training the operator—-Help client for maintenance and repair—-Provide one year spare part—-Quality warranty for two years after sell
