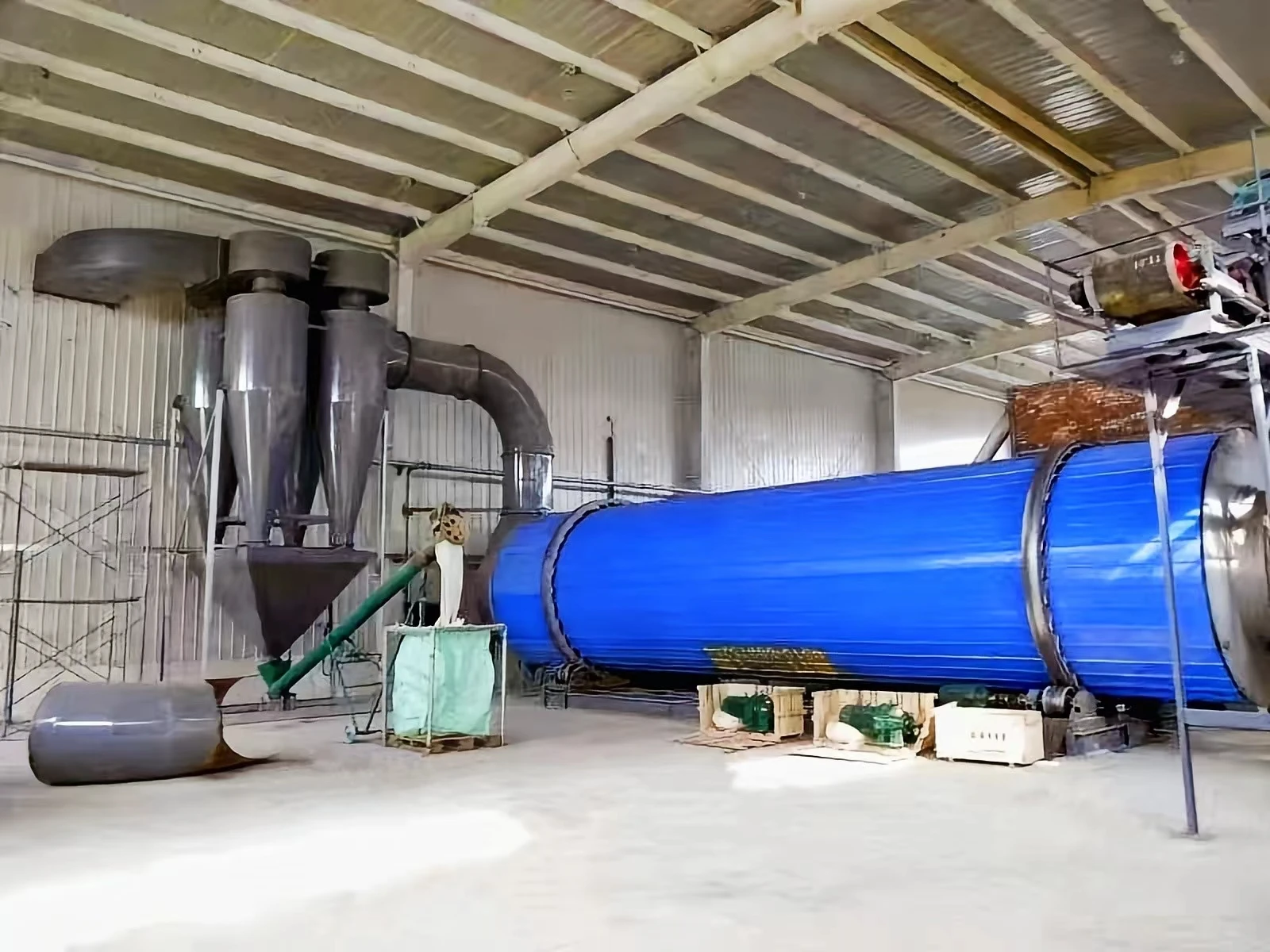

Hot Selling Price Cylinder Machine Rotary Distiller’s Grain Rotating Drum Dryer

Rotary Distiller’s Grain Rotating Drum Dryer is widely used to dry materials in industries like cement, mine, construction, chemical, food, compound fertilizer, etc. Thermocouples are installed in feeding and discharging units to control temperature. Temperature change of the dryer also canbe indicated by the thermometer, which is convenient for temperature control inside the dryer ( it is usually 250-350℃).

Description

Hot Selling Price Cylinder Machine Rotary Distiller’s Grain Rotating Drum Dryer

Rotary Distiller’s Grain Rotating Drum Dryer is widely used to dry materials in industries like cement, mine, construction, chemical, food, compound fertilizer, etc. Thermocouples are installed in feeding and discharging units to control temperature. Temperature change of the dryer also canbe indicated by the thermometer, which is convenient for temperature control inside the dryer ( it is usually 250-350℃).

Rotary Distiller’s Grain Rotating Drum Dryer 1.The material first goes into the inside drum, because there are the spiral shape boards fixed in the drum, when the dryer make rotary working, the spiral shape board will stir the material and make the material do movement.2.When the material reaches the right side of the drum, it will go into the second drum for further drying.3.The same working principle, the material then goes into outside drum, during the drying working process, the material will make three times drying, so the material can be dried completely in this process.
Rotary Distiller's Grain Rotating Drum Dryer
Rotary Distiller’s Grain Rotating Drum Dryer
Rotary Distiller's Grain Rotating Drum Dryer
Rotary Distiller’s Grain Rotating Drum Dryer
Rotary Distiller's Grain Rotating Drum Dryer
Rotary Distiller’s Grain Rotating Drum Dryer
Rotary Distiller’s Grain Rotating Drum Dryer
Item(m)
Productive Capacity(T/h)
Rotating Speed(r/min)
Motor power(kW)
Install angle(°)
Humidity of Final Material(%)
Φ1.0×5.0
0.5~1.2
1~19
4
3~5
≤1.5%
Φ1.2×6~10
1.5~3
5.5
Φ1.5×12~18
3~5.5
15
Φ1.8×12~18
5~6.5
18.5
Φ2.2×12~22
7~12
22
Φ2.4X15~20
9~15
30
Φ3.0×25
16
55
Jiangsu Changshi Drying Technology Co., Ltd specializes in design, production and development of mixer, dryer, crusher, granulator, vibrating screen, dust collector and conveyor. The company has modern standard workshop buildings, engineering and technical personnel with medium and senior titles, more than 10 sets of processing equipment.The specialty provides complete set of powder equipment and solutions. In accordance with the GMP certification standard, the whole process of service is provided.
Multiple sets of advanced and sophisticated equipment
Complete and strict production control to be ensure the quality

Rotary Distiller’s Grain Rotating Drum Dryer Service before sell:

—-Provide relative technical data for help equipment selection—-Running pilot test—-Offering advice for equipment selection, material analysis—-Provide flow chart, basic drawing—-Provide technical design

Rotary Distiller’s Grain Rotating Drum Dryer Service in sell:

—-Provide factory layout according to contract—-Manufacturing ordered equipment according to the related standard—-A presentation report of manufacturing situation will be offered every 15days—-Tracking and supervising in whole manufacturing and transporting period according to the contract requirement—-Photo of wooden case will be offered, wooden case with standard shipping marks.—-Photo of freight loading will be offered.—-A record of detailed delivery list will be offered—-A record of detailed freight loading list will be offered—-All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client’s clearing

Rotary Distiller’s Grain Rotating Drum Dryer Service after sell:

—-Send service engineer for help instruct installation.—-Send service engineer for running test at site and training the operator—-Help client for maintenance and repair—-Provide one year spare part—-Quality warranty for two years after sell

1.Can I use this machine to extract some raw materials?

Yes, in order to help you better, we suggest you provide the name of the raw material you want to process. 2.Can I use my own raw materials for extraction test? Yes, of course. We can do extraction tests and send videos and test reports for your reference. 3.Do you have OEM service? Do you provide parts? Yes, we will, as long as you provide us with your drawings and detailed requirements. 4.How can we visit your factory? You can fly to Changzhou airport, or if you arrive in Shanghai, you can tell us your specific location. We will arrange a driver to pick you up. 5.How to transport equipment? We usually choose sea transportation. Laboratory models can be shipped by air according to customer requirements. 6.What is the voltage of the equipment? The equipment voltage is 110V~380V, the specification can be customized according to the voltage standard of the country where your equipment is used.

Additional information

Model Number

HZG

Type

Drum Drying Equipment

Application

Chemicals Processing, Plastics Processing, Food Processing

Condition

New

Place of Origin

Jiangsu, China

Brand Name

CSTECH

Voltage

110V-480V (TBD)

Power

4KW-55KW

Dimension(L*W*H)

D1.0m*5.0m–D3.0m*25m

Key Selling Points

High Productivity

Warranty

2 years

Weight (KG)

15000

Applicable Industries

Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Energy & Mining, Other

Showroom Location

None

Marketing Type

Hot Product 2022

Machinery Test Report

Provided

Video outgoing-inspection

Provided

Warranty of core components

2 years

Core Components

Bearing, Pump, Gear, Motor, Gearbox, Other, PLC, Engine

Evaporation Capacity(kg/h)

5000

Heating Method

Gas/Steam/Oil/Coal fuel hotair furnace Heating

Material

SUS304, SUS304L, SUS316, SUS316L, Ti, Other

Product Name

Rotary Drum Dryer

Evaporation Capacity

50L-10000L

Drying Temperature

120-500℃

Way to Discharge

Manual/ Pneumatic / Electrical

Drying Efficiency

50%

Way to Control

Touch Screen/Button/Remote

Special Design

SCorrosive / Heavy Duty / Chamber Adhesive

Weight

2250KGS-60000KGS

After-sales Service Provided

Free spare parts

Certification

ISO9001
