Low Temperature Szg Seire Cone Rotary Dryer



Low Temperature Szg Seire Cone Rotary Dryer

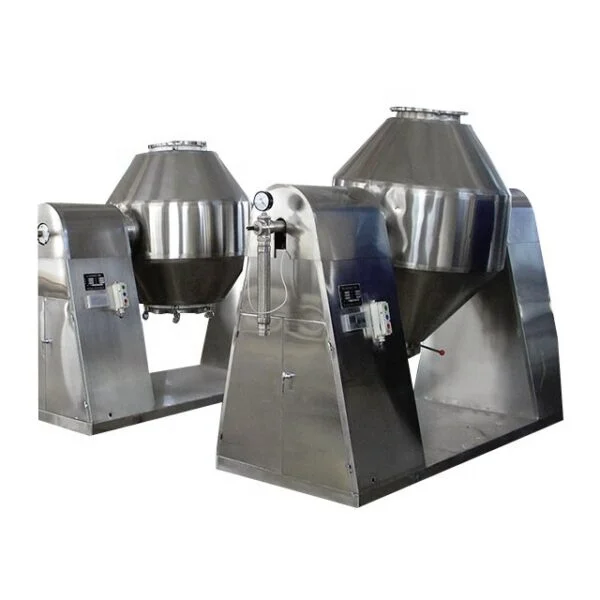

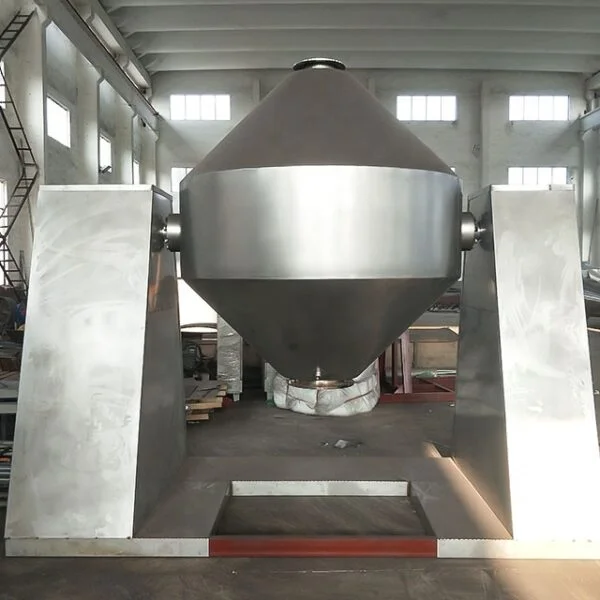

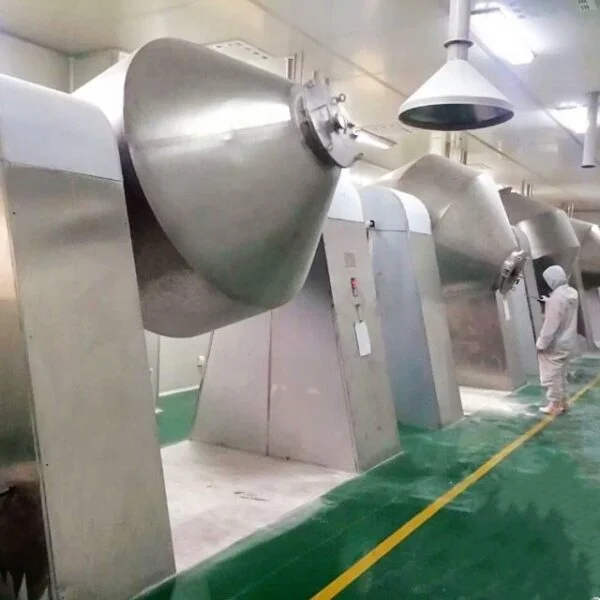

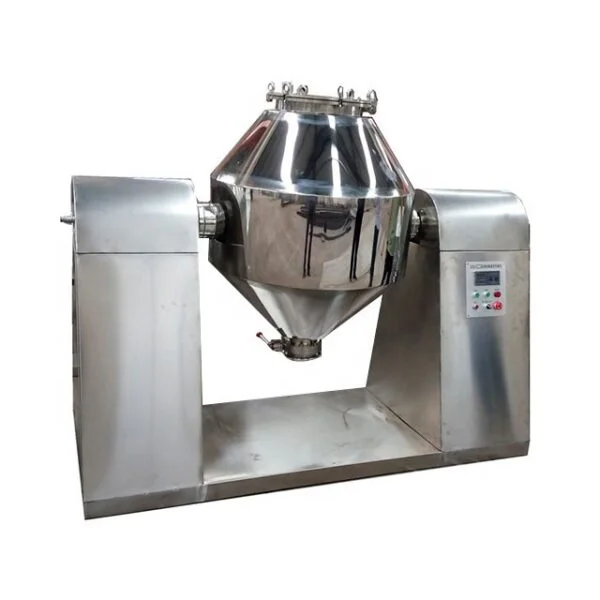

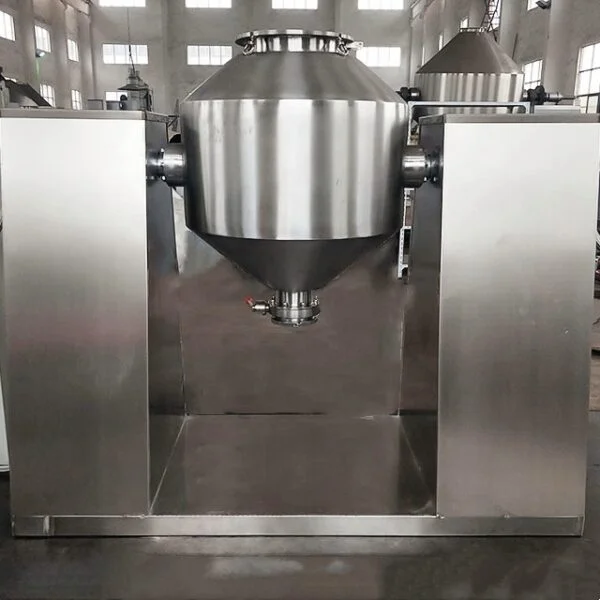

The vacuum dryer consists of a jacketed double conical shell rotating around 6 RPM with under the state of vacuum inside the shell, pass steam or hot water in to jacket for heating. The large heating surface area presented by the internals of the cone ensures uniform drying of the product, as the product gently tumbles while the cone rotates slowly. The vaporized steam can be pumped out through vacuum exhaust pipe when the damp raw material absorbed heat. The diffusive action induced by the tumbling cone constantly presents a fresh layer to come into contact with the indirectly heated walls of the shell, the dry speed of raw material is quickened and uniform drying efficiency is raised too. A well designed sealing system enable maintenance of deep vacuum inside the shell, and also ensures positive circulation of a heating media in the jacket.

Categories: , Tag:

Description

Low Temperature Szg Seire Cone Rotary Dryer
SZG Series Double Cone Blender
The vacuum dryer consists of a jacketed double conical shell rotating around 6 RPM with under the state of vacuum inside the shell, pass steam or hot water in to jacket for heating. The large heating surface area presented by the internals of the cone ensures uniform drying of the product, as the product gently tumbles while the cone rotates slowly. The vaporized steam can be pumped out through vacuum exhaust pipe when the damp raw material absorbed heat. The diffusive action induced by the tumbling cone constantly presents a fresh layer to come into contact with the indirectly heated walls of the shell, the dry speed of raw material is quickened and uniform drying efficiency is raised too. A well designed sealing system enable maintenance of deep vacuum inside the shell, and also ensures positive circulation of a heating media in the jacket.

1.When oil is used to heat, use automatic constant temperature control. It can be used for drying biology products and mine. Itstemperature of operation can be adjusted form 20-160 ℃ .

2.Compared to ordinal dryer, its heat efficiency will be 2 times higher.
3.The heat is indirect. So the raw material can not be polluted.

4.It is in conformity with the requirement of GMP. It is easy in washing and maintenance.

Low Temperature Szg Seire Cone Rotary Dryer
Low Temperature Szg Seire Cone Rotary Dryer
Low Temperature Szg Seire Cone Rotary Dryer
Low Temperature Szg Seire Cone Rotary Dryer
Low Temperature Szg Seire Cone Rotary Dryer

Model
SZG-0.1
SZG-0.2
SZG-0.3
SZG-0.5
SZG-0.8
SZG-1
SZG-1.5
Volume(L)
100
200
300
500
800
1000
1500
Diameter(mm)
800
900
1000
1100
1200
1250
1350
Height(mm)
1640
1890
2000
2360
2500
2500
2600
Center Height(mm)
1080
1160
1320
1400
1500
1700
1762
Rotary Cylinder Height(mm)
785
930
1126
1280
1543
1700
1750
Length(mm)
1595
1790
2100
2390
2390
2600
3480
Width(mm)
640
700
800
1000
1000
1150
1200
Materil Feed Factor
0.4-0.6
Max material feed weight(kg)
50
80
120
200
300
400
600
Connector
a(Vacuum)
Dg50
Dg50
Dg50
Dg50
Dg50
Dg50
Dg50
c(Condensed water)
G3/4″
G3/4″
G3/4″
G3/4″
G3/4″
G1″
G1″
Motor Power(kW)
Motor Power
1.1
1.5
1.5
2.2
2.2
3
4
Total Weight(kg)
650
900
1200
1450
1700
2800
3300
Note: The charging factor is determined according to the material. The contents of this description are for reference only; special requirements will be agreed upon separately.
Double Cone Blender
Model
SZG-2
SZG-2.5
SZG-3
SZG-4.0
SZG-4.5
SZG-5.0
Volume(L)
2000
2500
3000
4000
4500
5000
Diameter(mm)
1500
1600
1800
1900
1950
2000
Height(mm)
2700
2850
3200
3850
3910
4225
Center Height(mm)
1780
1810
2100
2350
2420
2510
Rotary Cylinder Height(mm)
1800
1870
2590
2430
2510
2580
Length(mm)
3600
3700
3800
4350
4450
4600
Width(mm)
1200
1200
1500
2200
2350
2500
Materil Feed Factor
0.4-0.6
Max material feed weight(kg)
800
1000
1200
1600
1800
2000
Connector
a(Vacuum)
Dg70
Dg70
Dg100
Dg100
Dg100
Dg100
c(Condensed water)
G1″
G1″
G1″
G1/2″
G1/2″
G1/2″
Motor Power(kW)
Motor Power
5.5
5.5
7.5
11
15
18.5
Total Weight(kg)
3580
4250
5500
6800
7900
8800
Note: The charging factor is determined according to the material. The contents of this description are for reference only; special requirements will be agreed upon separately.
Title goes here.
1. Material that cannot undertake high temperature.2. Material that is easy to oxidize.3. Material that do not permit to destruct.4. To recover material with residual volatile.5. Material with vigorous irrelative and toxicity.6. Biology products and mine.7. Dry raw materials of chemical industry, foodstuff industry, dyestuff industry and biochemistry at low temp etc.
Jiangsu Changshi Drying Technology Co., Ltd specializes in design, production and development of mixer, dryer, crusher, granulator, vibrating screen, dust collector and conveyor. The company has modern standard workshop buildings, engineering and technical personnel with medium and senior titles, more than 10 sets of processing equipment.The specialty provides complete set of powder equipment and solutions. In accordance with the GMP certification standard, the whole process of service is provided.

Low Temperature Szg Seire Cone Rotary Dryer Service before sell:

—-Provide relative technical data for help equipment selection—-Running pilot test—-Offering advice for equipment selection, material analysis—-Provide flow chart, basic drawing—-Provide technical design

Low Temperature Szg Seire Cone Rotary Dryer Service in sell:

—-Provide factory layout according to contract—-Manufacturing ordered equipment according to the related standard—-A presentation report of manufacturing situation will be offered every 15days—-Tracking and supervising in whole manufacturing and transporting period according to the contract requirement—-Photo of wooden case will be offered, wooden case with standard shipping marks.—-Photo of freight loading will be offered.—-A record of detailed delivery list will be offered—-A record of detailed freight loading list will be offered—-All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client’s clearing

Low Temperature Szg Seire Cone Rotary Dryer Service after sell:

—-Send service engineer for help instruct installation.—-Send service engineer for running test at site and training the operator—-Help client for maintenance and repair—-Provide one year spare part—-Quality warranty for two years after sell

1.Can I use this machine to extract some raw materials?

Yes, in order to help you better, we suggest you provide the name of the raw material you want to process. 2.Can I use my own raw materials for extraction test? Yes, of course. We can do extraction tests and send videos and test reports for your reference. 3.Do you have OEM service? Do you provide parts? Yes, we will, as long as you provide us with your drawings and detailed requirements. 4.How can we visit your factory? You can fly to Changzhou airport, or if you arrive in Shanghai, you can tell us your specific location. We will arrange a driver to pick you up. 5.How to transport equipment? We usually choose sea transportation. Laboratory models can be shipped by air according to customer requirements. 6.What is the voltage of the equipment? The equipment voltage is 110V~380V, the specification can be customized according to the voltage standard of the country where your equipment is used.

Additional information

Model Number

SZG

Type

Rotary Drying Equipment

Application

Chemicals Processing, Plastics Processing, Food Processing

Condition

New

Place of Origin

Jiangsu, China

Brand Name

CSTECH

Voltage

110V-450V

Power

1.1-18.5kW

Dimension(L*W*H)

Depends on the model

Key Selling Points

Energy saving

Warranty

2 years

Weight (KG)

5000

Applicable Industries

Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops, Other

Showroom Location

None

Marketing Type

Hot Product 2022

Machinery Test Report

Provided

Video outgoing-inspection

Provided

Warranty of core components

2 years

Core Components

Bearing, Pump, Motor, Gearbox, PLC, Engine, Gear

Evaporation Capacity(kg/h)

60

Heating Method

Steam Heating

Material

SUS304, SUS304L, SUS316, SUS316L, Ti, Other

Product name

Double Cone Blender

Advantage

Low Consumption High Efficiency

Max loading volume

50-2500L

Rotary height

1750-4200 mm

Rotary speed

4-6 rmp

Design pressure of jacket

≤0.3 Mpa

Designed pressure in the tank:

-0.1-0.15 Mpa

Heating area

1.16-14.1㎡

Working temperature

In the tank≤85℃ jacket≤140℃

Certification

ISO9001
