Energy Saving Dryer Powder Spray Drying
Description
Dryer Powder Spray Drying Product Overview
Spray drying is the most widely used technology in liquid shaping and drying industry.Which is the most suitable for producing solid power or particle products from liquid material such as solution,emulsion,suspension and pumpable paste states.So if you want Particle size distribution,Residual moisture content,Bulk density and Particle shape must meet the precise standard,the spray drying is the best choice.

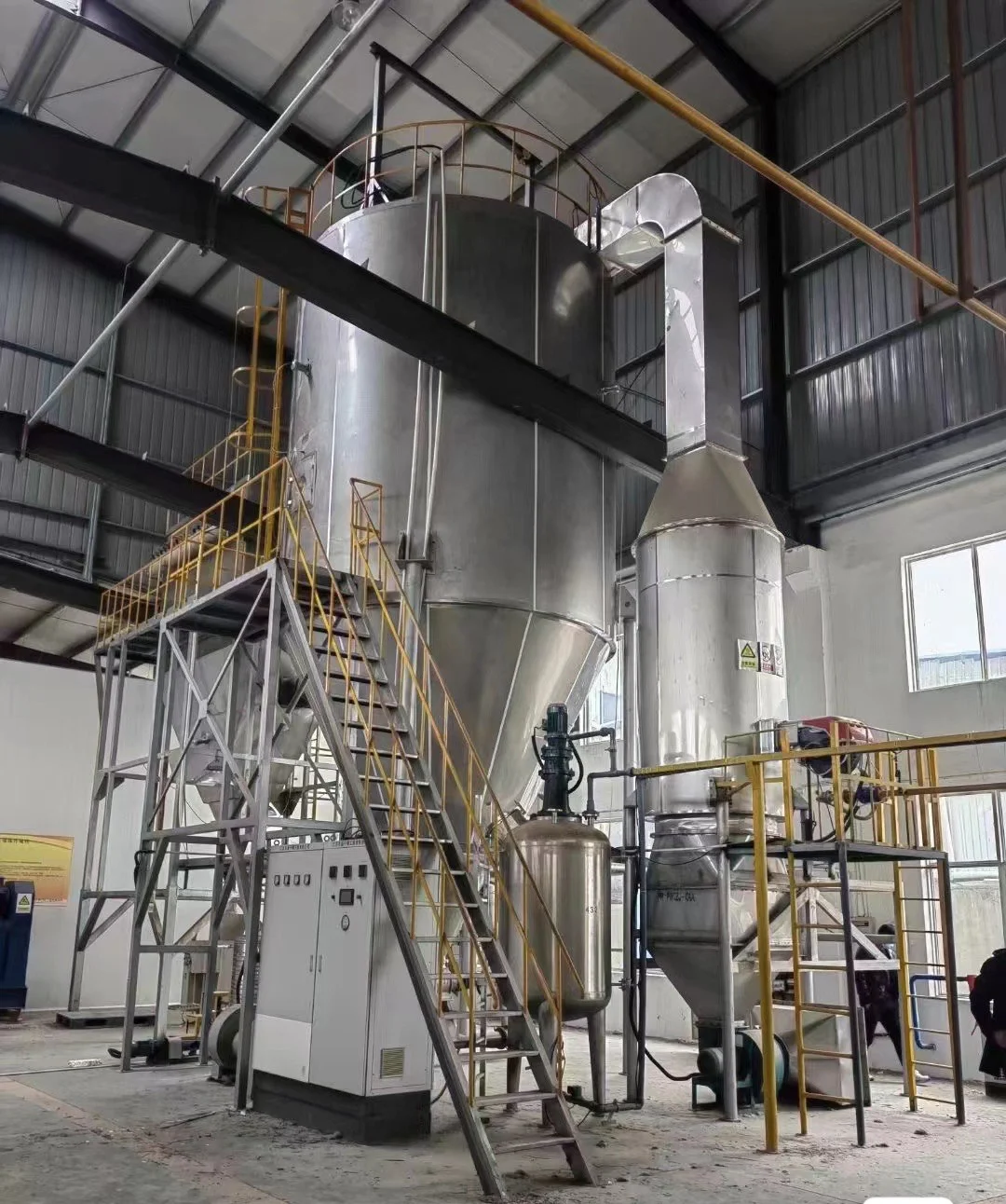

Hot air enters into dryer in spiral form under the function of air distributor after being filtered and heated. By passing through high-speed rotary atomizer on top of tower, the liquid raw material will be sprayed into the extremely fine mist beads. Through the very short time of contacting with hot air, the liquid can be dried into final solid powder products. The final products will be discharged continuously from the bottom of drying tower and from cyclone separator. Waste tail air will be discharged from exhaust fan.
Dryer Powder Spray Drying Main Technical Design
1.Atomizing way: Centrifugal atomizing or pressure atomizing
2.Air-filtering system: Pre & Middle air filter and HEPA3.Input system: Adjustable Screw or mono Pump4.Heating way: Electric, natural gas or other heating way
5.Dust exhaust system: Cyclone separater×2 + water film duster or pulse bag filter
6.Collect product system: Discharge interminately by Cyclone separater and Main tower chamber
7.Control system: The atomizer is adjusted stably by frequency conversion control; inlet and outlet temperature inside can be set up precisely. PLC control. Touch screen
Dryer Powder Spray Drying
Model | LPG-5 | LPG-25 | LPG-50 | LPG-100 | LPG-150 | LPG-200-2000 |
Inlet Temperature(℃) | 140-350℃(Adjustable) | |||||
Outlet Temperature(℃) | ～65-120℃ | |||||
Max Evaporation Capacity(kg/h) | 5 | 25 | 50 | 100 | 150 | 200-2000 |
Transmission Mode of Atomizer | Mechanical Transmission | |||||
Rotating Speed of Atomizer(rpm) | 28000 | 25000 | 18300 | 18300 | 15500 | 11000-15500 |
Diameter of Atomizer(mm) | 50 | 80 | 120 | 120 | 150 | 180-340 |
Heating Resource | Electric Heating, Steam, Electric Heating & Steam, Oil or Gas | |||||
Power of Electric Heater(kW)(By Using Electric as Heating Resource) | 9 | 36 | 72 | 132 | 185 | TBD |
Weight(kg) | 900 | 4500 | 6000 | 8000 | 100000 | |
Overall Dimension(L*W*H)(m) | 1.8*0.93*2.2 | 3*2.7*4.26 | 3.7*3.2*5.1 | 4.6*4.2*6 | 5.5*4.5*7 | – |
Dry Powder Collecting Rate(%) | 98% |
(1)Chemical industry: NaF(KF)、Basic dye pigment、Dye intermediates、Compound fertilizer、Formaldehyde silicicacid、catalyzer、Sulphuric acid、amino acid、Silica etc. (2)Plastic resin: AB，ABS emulsion、urea resin、phenolic resin、Melamineformaldehyde resin、polyethylene、polyvinyl chloride etc. (3)Food industry: Fat rich milk powder、Prion、Cocoa milk powder、Milkreplacer、Blood powder、Egg white etc. (4)Food and plants: oats、broth prepared by steaming chicken、Coffee、Instant tea、Spicedmeat、protein、soybean、Peanut protein、Hydrolysate etc. (5)Sugars: Corn syrup、corn starch、glucose、pectin、malt dust、Potassium sorbateetc. (6)Ceramics: alumina、Ceramic tile material、magnesium oxide、talc etc.
Jiangsu Changshi Drying Technology Co., Ltd specializes in design, production and development of mixer, dryer, crusher, granulator, vibrating screen, dust collector and conveyor. The company has modern standard workshop buildings, engineering and technical personnel with medium and senior titles, more than 10 sets of processing equipment.The specialty provides complete set of powder equipment and solutions. In accordance with the GMP certification standard, the whole process of service is provided.
Dryer Powder Spray Drying Service before sell:
—-Provide relative technical data for help equipment selection—-Running pilot test—-Offering advice for equipment selection, material analysis—-Provide flow chart, basic drawing—-Provide technical design
Dryer Powder Spray Drying Service in sell:
—-Provide factory layout according to contract—-Manufacturing ordered equipment according to the related standard—-A presentation report of manufacturing situation will be offered every 15days—-Tracking and supervising in whole manufacturing and transporting period according to the contract requirement—-Photo of wooden case will be offered, wooden case with standard shipping marks.—-Photo of freight loading will be offered.—-A record of detailed delivery list will be offered—-A record of detailed freight loading list will be offered—-All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client’s clearing
Dryer Powder Spray Drying Service after sell:
—-Send service engineer for help instruct installation.—-Send service engineer for running test at site and training the operator—-Help client for maintenance and repair—-Provide one year spare part—-Quality warranty for two years after sell
1.Can I use this machine to extract some raw materials?
Yes, in order to help you better, we suggest you provide the name of the raw material you want to process. 2.Can I use my own raw materials for extraction test? Yes, of course. We can do extraction tests and send videos and test reports for your reference. 3.Do you have OEM service? Do you provide parts? Yes, we will, as long as you provide us with your drawings and detailed requirements. 4.How can we visit your factory? You can fly to Changzhou airport, or if you arrive in Shanghai, you can tell us your specific location. We will arrange a driver to pick you up. 5.How to transport equipment? We usually choose sea transportation. Laboratory models can be shipped by air according to customer requirements. 6.What is the voltage of the equipment? The equipment voltage is 110V~380V, the specification can be customized according to the voltage standard of the country where your equipment is used.
Additional information
| Model Number | LPG |
|---|---|
| Type | Spray Drying Equipment |
| Application | Chemicals Processing, Plastics Processing, Food Processing |
| Condition | New |
| Place of Origin | China |
| Brand Name | CSTECH |
| Voltage | 110V-380V |
| Power | 9kW-TBD |
| Dimension(L*W*H) | 1.8m*0.93m*2.2m–TBD |
| Key Selling Points | Competitive Price |
| Warranty | 2 years |
| Weight (KG) | 900 |
| Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Energy & Mining, Food & Beverage Shops |
| Showroom Location | None |
| Marketing Type | New Product 2022 |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 2 years |
| Core Components | Pump, Motor, PLC, Other |
| Evaporation Capacity(kg/h) | 5L-5000L |
| Heating Method | Steam/Electric/Gas/Diesel |
| Material | SUS304, SUS304L, SUS316, SUS316L, Ti, Other, 304 Stainless Steel |
| Product name | High-speed Centrifugal Spray Drying |
| Weight | 900kg-TBD |
| Drying Efficiency | 98% |
| Way to Discharge | Manual/ Pneumatic / Electrical |
| Way to Control | Touch Screen/Remote/Button |
| Installation | Engineer Guide |
| After-sales Service Provided | Field installation, commissioning, etc. |
| After Warranty | Online support |
| Certification | ISO9001 |
