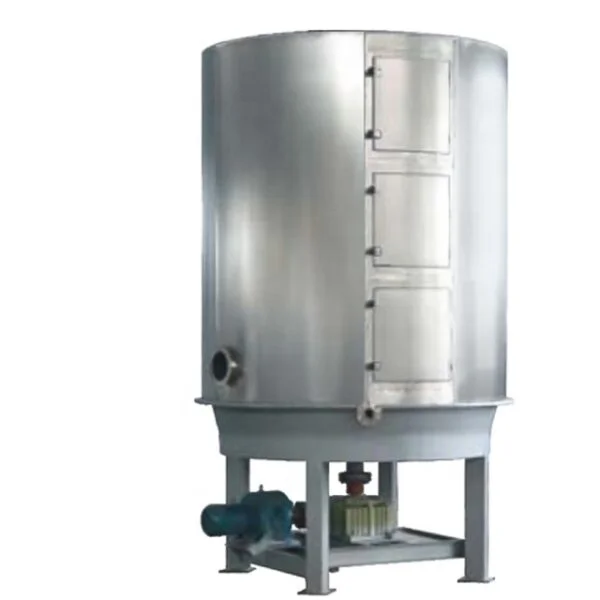

high efficiency Continuous Rotary Plate Dryer for Chemical Powder
Continuous Rotary Plate Dryer for chemical powder is a kind of high efficiency conducting and continuous drying equipment. Its unique structure and operating principle provide advantages of high heat efficiency , low energy consumption, less occupying area, simple configuration, easy operation and control as well as good operating environment etc. It is widely used in drying process in the fields of chemical,agricultural chemicals, foodstuff, fodder,process of agricultural and by-products etc., and is well received by various industries.
Description
high efficiency Continuous Rotary Plate Dryer for Chemical Powder
Continuous Rotary Plate Dryer for chemical powder is a kind of high efficiency conducting and continuous drying equipment. Its unique structure and operating principle provide advantages of high heat efficiency , low energy consumption, less occupying area, simple configuration, easy operation and control as well as good operating environment etc. It is widely used in drying process in the fields of chemical,agricultural chemicals, foodstuff, fodder,process of agricultural and by-products etc., and is well received by various industries. Now there are three big categories, normal pressure, c losed and vacuum styles and four specifications of 1200, 1500, 2200 and 2500; and three kinds of constructions A (carbon steel), B (stainless steel for contact parts) and C (on the basis of B to add stainless steel for s team pipes, main shaft and support, and stainless steel linings for cylinder body and top cover).With a drying area of 4 to 180 square meters, now we have hundreds of models of s eries products and various kinds of auxiliary devices available to meet requirements of various products.
| Continuous Rotary Plate Dryer for chemical powder Type | Diameter(mm) | Hight(mm) | Area of drying(㎡) | Power(kW) | Continuous Rotary Plate Dryer for chemical powder Type | Diameter(mm) | Hight(mm) | Area of drying(㎡) | Power(kW) | ||
| 1200/4 | 1850 | 2608 | 3.3 | 3 | 120000 | 2200/18 | 2900 | 5782 | 55.4 | 11 | |
| 1200/6 | 3028 | 4.9 | 150000 | 2200/20 | 6202 | 61.6 | |||||
| 1200/8 | 3448 | 6.6 | 5.5 | 180000 | 2200/22 | 6622 | 67.7 | 15 | |||
| 1200/10 | 3868 | 8.2 | 220000 | 2200/24 | 7042 | 73.9 | |||||
| 1200/12 | 4288 | 9.9 | 280000 | 2200/26 | 7462 | 80.0 | |||||
| 1500/6 | 2100 | 3022 | 8.0 | 5.5 | 200000 | 3000/8 | 3800 | 4050 | 48 | 18.5 | |
| 1500/8 | 3442 | 10.7 | 250000 | 3000/10 | 4650 | 60 | |||||
| 1500/10 | 3862 | 13.4 | 280000 | 3000/12 | 5250 | 72 | |||||
| 1500/12 | 4282 | 16.1 | 7.5 | 300000 | 3000/14 | 5850 | 84 | ||||
| 1500/14 | 4702 | 18.8 | 320000 | 3000/16 | 6450 | 96 | |||||
| 1500/16 | 5122 | 21.5 | 340000 | 3000/18 | 7050 | 108 | 22 | ||||
| 2200/6 | 2900 | 3262 | 18.5 | 7.5 | 220000 | 3000/20 | 7650 | 120 | |||
| 2200/8 | 3682 | 24.6 | 250000 | 3000/22 | 8250 | 132 | |||||
| 2200/10 | 4102 | 30.8 | 280000 | 3000/24 | 8850 | 144 | |||||
| 2200/12 | 4522 | 36.9 | 11 | 320000 | 3000/26 | 9450 | 156 | 30 | |||
| 2200/14 | 4942 | 43.1 | 360000 | 3000/28 | 10050 | 168 | |||||
| 2200/16 | 5362 | 49.3 | 11 | 400000 | 3000/30 | 10650 | 180 |
Continuous Rotary Plate Dryer for chemical powder Service before sell:
Continuous Rotary Plate Dryer for chemical powder Service in sell:
Continuous Rotary Plate Dryer for chemical powder Service after sell:
1.Which device is better for me?
