Factory Banana Hot Air Circulating Oven
Banana Hot Air Circulating Oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc
Description
Factory Herb Drying Mango Machine Industrial Electric Food Circulation Tray Banana Hot Air Circulating Oven
1.Options of heat source: steam, electricity, or far infrared, or both steamelectricity.
2.Drying temperature: steam heating 50-130℃,Max.140℃.
3.Electricity and far infrared:50-300 ℃ .Automatic control system andcomputer control system on request.4.Commonly used steam pressure 0.2-0.8Mpa(2-8 bar).
5.For CT-C-I,electric heated, rated power consumption:15Kw,realconsumption:5-8Kw.
6.The special requirements should be indicated at the time of order.
7.Please consult as for any special requirements.
8.For operation temperature of over 140 ℃ or less than 60℃, pleaseindicate when order.
9.The ovens and baking trays made by our factory are uniform indimensions, and can be exchanged each other.
10.Baking plate dimensions:460*640*45mm

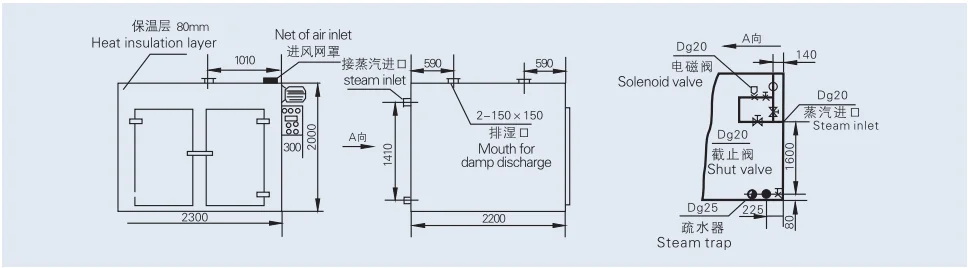

Banana Hot Air Circulating Oven Flow chart
Banana Hot Air Circulating Oven technical parameters
|
Hot Air Circulating Drying Oven
|
|||||||||
|
Industry Standard Models
|
Model
|
Drying
Capacity/batch
(kg)
|
Power
(kW)
|
Steam to be
consumed
(kg/h)
|
Heat Dissipation Area(㎡)
|
Air volume
(㎡/h)
|
Baking Trays
|
Overall Dimensions
(L*W*H)(mm)
|
Baking Car (set)
|
|
RXH-5-C
|
CT-C-0
|
25
|
0.45
|
9
|
10
|
3400
|
8
|
1400*1200*1600
|
1
|
|
RXH-14-C
|
CT-C-I
|
100
|
0.45
|
18
|
20
|
3450
|
48
|
2300*1200*2000
|
2
|
|
RXH-27-C
|
CT-C-II
|
200
|
0.9
|
36
|
40
|
6900
|
96
|
2300*2200*2000
|
4
|
|
RXH-41-C
|
CT-C-III
|
300
|
1.35
|
54
|
80
|
10350
|
144
|
2300*3220*2000
|
6
|
|
RXH-54-C
|
CT-C-IV
|
400
|
1.8
|
72
|
100
|
13800
|
192
|
4450*2200*2000
|
8
|
|
RXH-25-A
|
High-efficiency high-temperature far-infrared sterilization oven, power matching according to temperature requirements.
|
1200*1000*1600
|
Banana Hot Air Circulating Oven Applications
This drying oven is suitable for the material and product hot solidificationand dry dewatering in the food, farming, side-product, aquatic product, light industries, heavy industries andothers industries. Such as:plaster, powder,particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electriccomponent, baking varnish and etc.
Jiangsu Changshi Drying Technology Co., Ltd specializes in design, production and development of mixer, dryer, crusher, granulator, vibrating screen, dust collector and conveyor. The company has modern standard workshop buildings, engineering and technical personnel with medium and senior titles, more than 10 sets of processing equipment.The specialty provides complete set of powder equipment and solutions. In accordance with the GMP certification standard, the whole process of service is provided.
Multiple sets of advanced and sophisticated equipment for Banana Hot Air Circulating Oven
Complete and strict production control of Banana Hot Air Circulating Oven to be ensure the quality
Banana Hot Air Circulating Oven Service before sell:
—-Provide relative technical data for help equipment selection—-Running pilot test—-Offering advice for equipment selection, material analysis—-Provide flow chart, basic drawing—-Provide technical design
Banana Hot Air Circulating Oven Service in sell:
—-Provide factory layout according to contract—-Manufacturing ordered equipment according to the related standard—-A presentation report of manufacturing situation will be offered every 15days—-Tracking and supervising in whole manufacturing and transporting period according to the contract requirement—-Photo of wooden case will be offered, wooden case with standard shipping marks.—-Photo of freight loading will be offered.—-A record of detailed delivery list will be offered—-A record of detailed freight loading list will be offered—-All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client’s clearing
Banana Hot Air Circulating Oven Service after sell:
—-Send service engineer for help instruct installation.—-Send service engineer for running test at site and training the operator—-Help client for maintenance and repair—-Provide one year spare part—-Quality warranty for two years after sell
1.Can I use this machine to extract some raw materials?
Yes, in order to help you better, we suggest you provide the name of the raw material you want to process. 2.Can I use my own raw materials for extraction test? Yes, of course. We can do extraction tests and send videos and test reports for your reference. 3.Do you have OEM service? Do you provide parts? Yes, we will, as long as you provide us with your drawings and detailed requirements. 4.How can we visit your factory? You can fly to Changzhou airport, or if you arrive in Shanghai, you can tell us your specific location. We will arrange a driver to pick you up. 5.How to transport equipment? We usually choose sea transportation. Laboratory models can be shipped by air according to customer requirements. 6.What is the voltage of the equipment? The equipment voltage is 110V~380V, the specification can be customized according to the voltage standard of the country where your equipment is used.
Additional information
| Model Number | CT-C |
|---|---|
| Type | Tray Dryer |
| Application | Chemicals Processing, Plastics Processing, Food Processing |
| Condition | New |
| Place of Origin | Jiangsu, China |
| Brand Name | CSTECH |
| Voltage | 110V-380v |
| Power | 0.45kw-1.8kw |
| Dimension(L*W*H) | 1400*1200*1600-1200*1000*1600 |
| Key Selling Points | Easy to Operate |
| Warranty | 2 years |
| Weight (KG) | 2000 |
| Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Energy & Mining, Food & Beverage Shops, Other |
| Showroom Location | None |
| Marketing Type | Hot Product 2022 |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 2 years |
| Core Components | Motor, PLC, Other |
| Evaporation Capacity(kg/h) | 1-300 |
| Heating Method | Steam/Electricity/Far Infraded/Both Steam&Electricity |
| Material | SUS304, SUS304L, SUS316, SUS316L, Ti, Other |
| Product name | CT-C hot air circulating drying oven |
| Color | Silver |
| Advantage | Energy Saving |
| Capacity | 25-400KG/Batch |
| Temperature | 50-300℃ |
| Baking Car | 1-8sets |
| Tray Quantity | 8-192PCS |
| Tray Size | 460*640*45mm/Customizable |
| Feature | Wide range of applications |
| Certification | ISO9001 |
